starsky

Well-known member
Joined
Apr 14, 2006
Messages
439
Location
Scotland
Just thought I'd post this as reference material for anyone thinking of fitting a Roland GK pickup to an EBMM. Using the forum search hopefully this'll appear in the list if anyone is interested in fitting one.

I recently fitted a Roland GK3 to my Luke. The process was nice and easy and is fully reversible as it's non-invasive (i.e. I didn't choose to physically screw it onto the guitar).

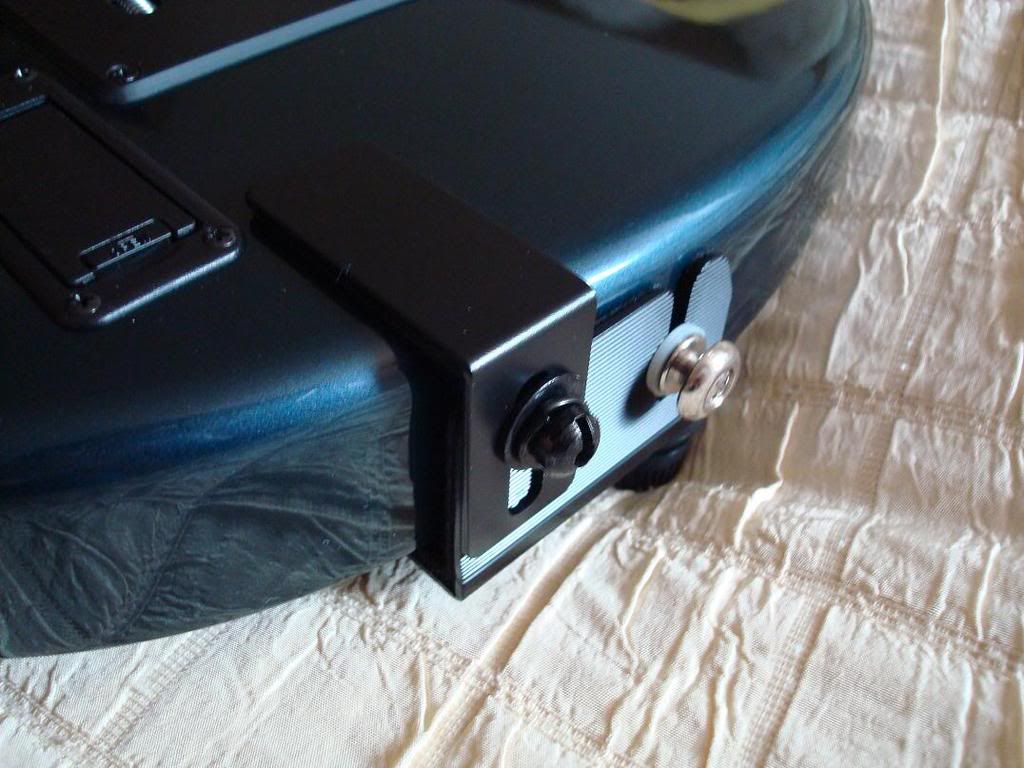

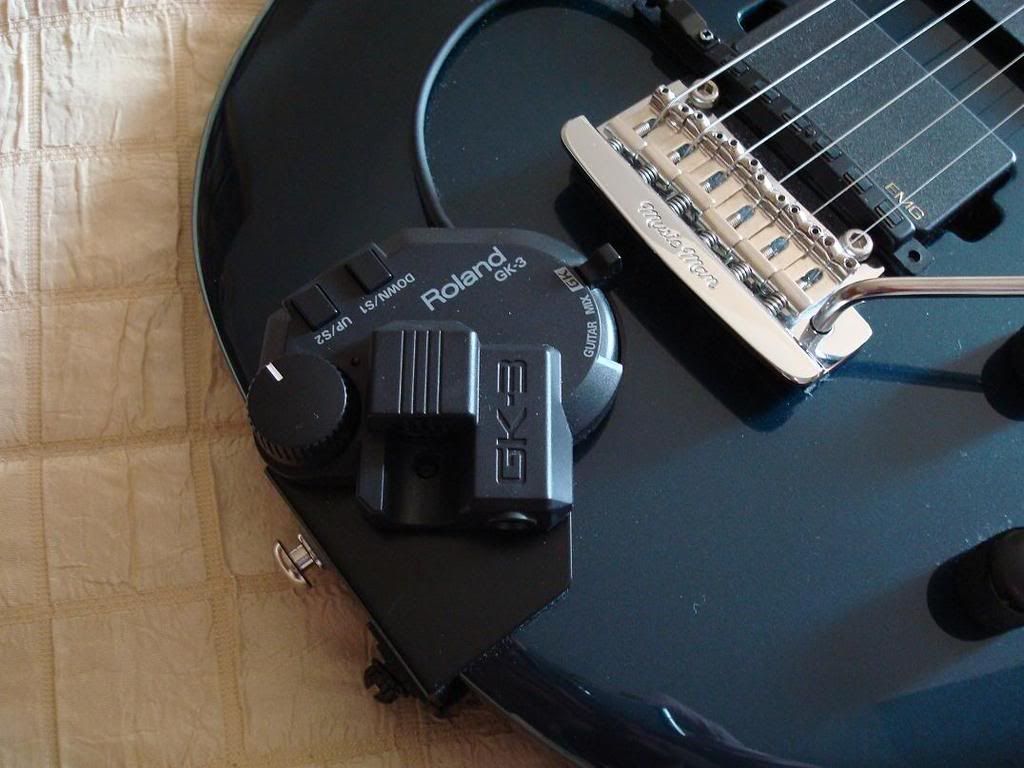

The control unit is housed on a metal plate, which is nicely padded on the guitar-facing side so there are no scratches. It attaches to the guitar via the lower strap button, which you unscrew slightly, slide on the control plate, then screw back down again, which holds it in place. The second section of the control plate attaches to the first by another screw, and grips the back of the guitar, again it is nicely padded.

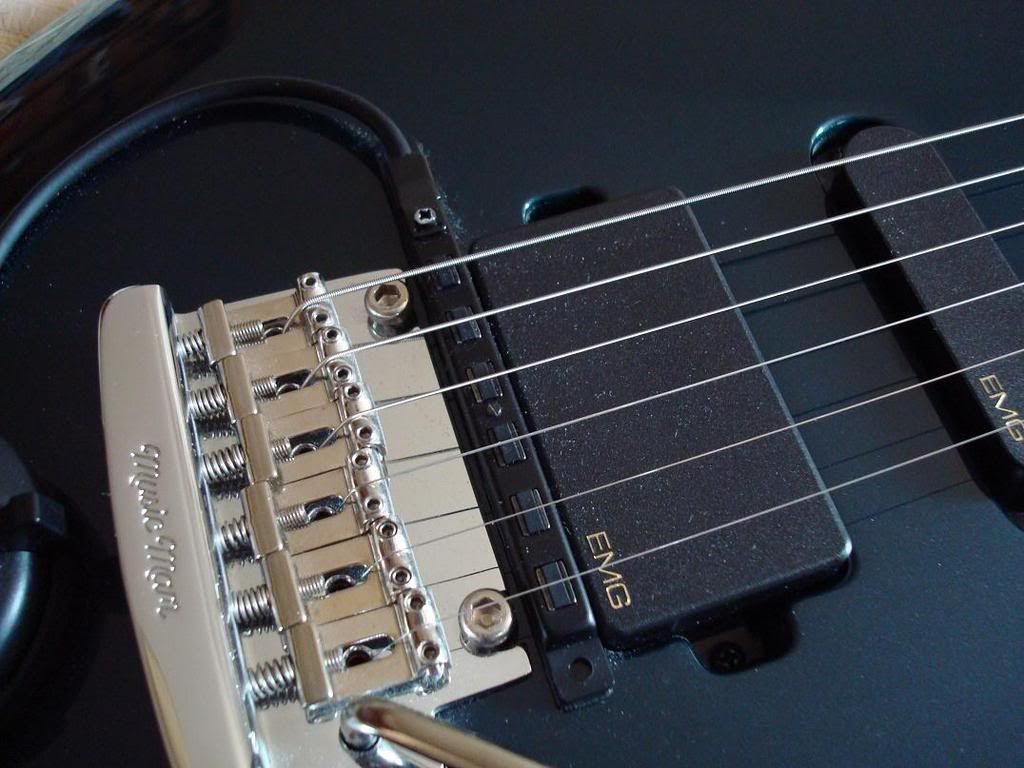

The only fiddly bit is fitting the actual GK pickup, which involves positioning it between the bridge and the bridge pickup, and using spacers to raise the height so that it is close enough to the strings (I forget the exact measurement, the GK instructions are fairly easy to follow).

The GK pickup can be screwed onto the guitar, but again I chose to just use the supplied sticky pad which can be removed, and is the only potential source of damage to the guitar if it was removed hastily. I think I'll take my time if I ever decide to remove it. :)

So...it can be done, it fits nicely and doesn't intrude on my playing. It adds a little to the weight of the guitar but not noticeably when playing. I've got it all attached to a Roland VG99 which is ace.








Last edited:

GHWelles

Well-known member
Joined
Jul 28, 2005
Messages
1,375
Location
Rancho Mirage
You know what else is nice, you can get a built in version where the Midi pickup itself is all you see. The giant plastic wart and cable electronics are all inside the guitar. Not reversible unless you don't mind two little holes in your guitar next to the bridge.


RobW

Well-known member
Joined
May 5, 2006
Messages
1,012
Location
Minnesota
very cool

Just curious , but does your trem float?

If so, I assume that the GK3 works correctly, and that guitar synth technology has progressed quite a lot, but I have a friend who long ago put a Roland GR-1 pickup on an Ibanez w/floating trem and always seemed to have problems with it working correctly; tracking, intonation, etc.
It was usable and all, but it certainly had it's annoyances. He never could really get it to work 100% "right".

Then he bought a cheapo Epiphone SG copy w/ hardtail bridge which he mounted the GR-1 to, and it works flawlessly. He's much much much happier with it's performance.


GHWelles

Well-known member
Joined
Jul 28, 2005
Messages
1,375
Location
Rancho Mirage
very cool

Just curious , but does your trem float?

If so, I assume that the GK3 works correctly, and that guitar synth technology has progressed quite a lot.

Yes the trem floats, and I have a GK-2A built in. The trem is not a problem. The key for me seems to be correct string spacing and string height,and then setting the synth unit correctly. Works great for import strat string spacing and 12" string radius.
