Help! Albert Lee HH 2010 push/pull tone pot replacement

[Speedy Ceviche]

Hey ebmm fam,

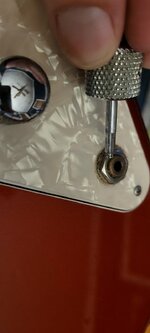

My GC exclusive Albert Lee HH from 2010 took a big spill today and just so happened to land on the tone knob, which is (was) the push/pull coil tap special from that time. The entire core post broke off and came out as a result.
Does anybody know how to obtain a replacement for this particular push/pull pot?
This is typically my main axe and I really need to get it back in shape ASAP.



[DrKev]

You need a 500kΩ push/pull SHORT solid shaft. Some pots have a long shaft for use where the pots fits through the wood. Others have a short shaft for use with a pickguard. You want short shaft. The knob has a set screw, so that mean solid shaft (rather than split).

CTS Push-pull Pots, DPDT - StewMac

A high quality double-pole, double-throw (DPDT) CTS push-pull pot for guitar wiring.

www.stewmac.com

If you re taking to a tech/luthier to do they may already have one to hand so check with them before you order.

Remember, you can call Music Man anytime and see if you can order one direct from them.



[beej]

Yup! It's a standard pot any guitar shop should have handy. Plus a dozen online retailers would as well.

I'm assuming you'll want someone to install it for you as well- I would probably take it to your local repair shop and let them have at it.



[loocnmad]

Quick note if you're doing this yourself. The CTS pots are my favorite but they are a little trickier to solder because of the attached PCB. They're also wider and can sometimes be hard to get in a tight cavity if the mounting hole is too close to the side. Bournes pots are a good alternative that are closer to the original part.

like DrKev said, though, the most important things are short shaft, solid post, 500k.



[loocnmad]

Another thought. I had a push pull pop out like that once. I was able to line up the flat side by feel and with a little gentle pressure it actually popped back in and worked fine till I swapped it out.

Don't know if that will work for you, and I would still recommend replacing it, but it may help to get you by in a pinch.



[Speedy Ceviche]

Thank you all so much! @loocnmad I have been playing around with that as well, so far to no avail. Thank you, though!



[jayjayjay]

It's a push-push, but note that Music Man sells these via their on-line shop:

500k Push/Push Potentiometer

500K push/push tone potentiometer for the following Ernie Ball Music Man guitars: Luke 3 (with push/push on tone), Valentine, JP13, JP15, JP16 and Majesty with version 1 preamps. Also used as push/push volume pot for the StingRay Short Scale bass. Note: Majesty v1 preamps have the mono/stereo...

shop.music-man.com



[fbecir]

Hello
Another solution is to put a normal pot and to add a mini switch : Albert Lee HH : how to split the humbuckers

Very happy with that configuration



[DrKev]

It's a push-push, but note that Music Man sells these via their on-line shop:

500k Push/Push Potentiometer

500K push/push tone potentiometer for the following Ernie Ball Music Man guitars: Luke 3 (with push/push on tone), Valentine, JP13, JP15, JP16 and Majesty with version 1 preamps. Also used as push/push volume pot for the StingRay Short Scale bass. Note: Majesty v1 preamps have the mono/stereo...

shop.music-man.com

That's a long shaft pot for controls mounted through the wood. He needs a short shaft pot for mounting through a pickguard.
